Range Rover P25A9 Fault
A Range Rover Velar was brought in for diagnosis after engine and oil system warnings appeared
What should have been a normal drive turned into something else entirely. Mr A was behind the wheel of his 2018 Range Rover Velar when the engine management light appeared on the dashboard, followed by a warning message relating to the engine oil system. There had been no warning signs beforehand.
Most drivers would be unsettled by oil-related warnings appearing out of the blue. The Range Rover Velar engine warning lights left Mr A worried. What was going on with the vehicle? Was it safe to continue the journey? And what might happen if the fault was left unchecked?
Mr A, from Caerphilly, contacted Ystrad Service Centre in Ystrad Mynach after hearing good things about us from a friend. He wanted the problem investigated, with an honest explanation of what was causing the warnings and what the next steps should be.
Mr A had the vehicle booked in within days.
Engine management and oil system warnings can point to a fault that requires further diagnosis
Building the Picture: Mr A’s Account and Our Initial Scan
Once the vehicle was with us at Ystrad Service Centre, Ystrad Mynach, our technicians sat down with Mr A to go through what had happened. We asked when the warnings had first appeared, whether they had remained on or appeared intermittently, and whether anything about the vehicle had changed before they showed up.
With Mr A’s account noted, our technicians connected dealer-level diagnostic equipment and ran a full system scan. This resulted in one stored fault code being located:
- P25A9-13: Piston cooling oil control circuit open. The engine control module (ECM) had picked up an open circuit in the electrical circuit of the piston cooling oil control valve.

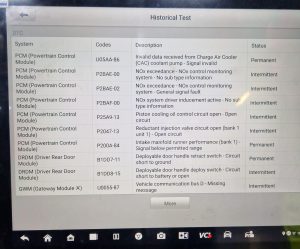

Diagnostic testing identified P25A9-13, indicating an open circuit in the piston cooling oil control system
To help control piston temperature during operation, the engine relies on oil jets inside the engine block that spray engine oil onto the underside of the pistons. The piston cooling oil control valve controls the flow of engine oil to these jets. If the electrical circuit between the ECM and the valve is interrupted, the ECM may not be able to actuate the valve correctly, and oil may not reach the piston cooling jets as intended.
When this occurs, the engine management light and an oil-related warning message can both appear, even if there is nothing wrong with the oil level. The warning is connected to the engine’s ability to control oil flow to the piston cooling system. It is not necessarily a sign that oil is low.
The fault code was on record and the warning pattern made sense. Our technicians at Ystrad Service Centre began a focused diagnostic process to establish the root cause of the Range Rover P25A9 fault.
Working Through the Circuit: P25A9 Range Rover Diagnostic
The fault code had given our technicians a strong starting point for the P25A9 Range Rover diagnostic. It confirmed an open circuit, but not where the fault lay within the circuit. The wiring, connector, valve, or another section of the circuit could each have been responsible. Our technicians tested each one in a structured sequence.
Step 1: Manufacturer technical data review
Before starting any physical work, our technicians consulted the manufacturer’s technical information system. This covered known issues, technical service bulletins, recalls, and field remedies linked to the P25A9 fault on the Range Rover Velar.
- Working from the latest manufacturer data ensures our diagnostic process starts on the right footing.
Step 2: Wiring harness inspection
The wiring harness running to the piston cooling oil control valve was visually inspected. Our technicians checked for physical damage, chafing, corrosion, or anything that could have caused or contributed to the open circuit.
- The harness was in good condition with no faults visible.
Step 3: Connector and terminal pin assessment
Our technicians examined the electrical connector at the valve along with each terminal pin. A corroded pin, poor seating, or a terminal that has shifted position can all lead to an open circuit reading, even when the harness is undamaged.
- The connector and terminal pins were in acceptable condition, with no corrosion or mechanical issues identified.
Step 4: Oscilloscope testing
An oscilloscope was connected to test the electrical integrity of the wiring between the engine control module and the piston cooling oil control valve. This allowed our technicians to examine signal and supply performance under live conditions, rather than relying on a static resistance check alone.
- The wiring tested within expected parameters. The circuit between the control module and the valve was intact.
Step 5: Valve activation test
With every other part of the circuit cleared, the valve was the final component to assess. Our technicians used dealer-level diagnostic software to command the valve to activate and monitor its response.
- The valve did not respond as it should have. Testing indicated the valve had failed, confirming it as the root cause of the Range Rover P25A9 fault.
Every part of the circuit had been tested and cleared individually. The wiring and all connections were confirmed as sound, and every test pointed back to the valve.
Repairing the Piston Cooling Oil Control Valve Failure
With a clear diagnosis in hand, our team at Ystrad Service Centre contacted Mr A to go through the results. We explained how each section of the circuit had been tested and cleared, and why the piston cooling oil control valve needed replacing. Mr A was happy to proceed, and the repair got underway.
Here’s what was carried out:
- The failed piston cooling oil control valve was removed from its position in the engine block. The valve is located beneath other engine components, and our technicians carefully removed surrounding components to access it without disturbing adjacent systems.
- A new replacement valve was fitted and verified for correct seating, sealing, and secure electrical connection.
- The harness and connector were reconnected to the new component.
- All stored fault codes were cleared from the engine control module.
- Post-repair system checks confirmed the new valve was responding correctly to the engine control module.
- A final system scan verified no remaining fault codes and confirmed the oil-related warning message had cleared.
Vehicle Restored: The Range Rover Oil Control Valve Replacement Outcome
Mr A’s Range Rover Velar left Ystrad Service Centre with the engine management light off and the oil-related warning cleared from the dashboard. The piston cooling oil control valve failure had been diagnosed, repaired, and verified through post-repair testing. The system was operating as it should.
Mr A was pleased with the experience from start to finish: a structured investigation that tested each part of the circuit in turn, a fault traced to a failed piston cooling oil control valve, and the entire matter resolved in one visit. Our team at Ystrad Service Centre kept Mr A fully in the picture throughout, with honest and open communication at every stage.
By choosing Ystrad Service Centre, Mr A received a professional diagnosis, a competitive repair cost, and complete clarity over what had caused the Range Rover P25A9 fault and how it had been resolved.
